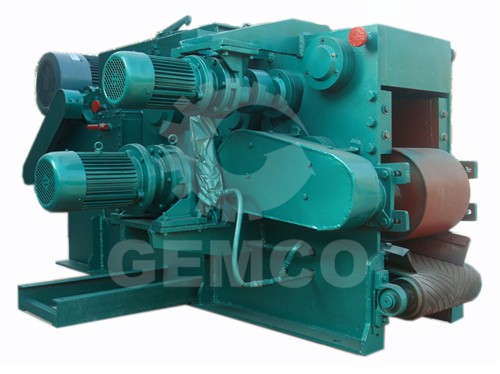

Wood Chipper
Wood chipper or wood chip pellet maker can be used to cut your material into small pieces, because the size of raw materials is usually not suitable for direct pelletizing. It is also the basic equipment in complete wood pellet plant, especially for large tree branches, limbs and large wood logs.
In GEMCO, we mainly use the drum chipper. Our drum chipper can process wood logs, wood thick branches, slab, bamboo, cotton stalks, thick straws and other non-wood fiber stalk into slices of 20-30mm.
Features:
- high capacity
- compact structure
- easy operation and maintenance
Models of wood chippers provided by GEMCO
| Model | B*215 | B*216 | B*218 | B*2113 |
|---|---|---|---|---|
| Cutter(piece) | 2 | 2 | 2 | 2 |
| Speed(rpm) | 592 | 590 | 650 | 500 |
| Max.allowed(mm) | 160 | 230 | 300 | 450 |
| Outputs size(mm) | 30 | 30 | 30 | 38 |
| Capacity(ton) | 3-4 | 7-8 | 12-15 | 15-30 |
| Main motor power(KW) | 45 | 55 | 110 | 200-250 |
| Feeder roller motor power(KW) | 2.2-3 | 3-4 | 4-5 | 7.5*2 |
| Oil pump motor power(KW) | 1.5*1 | 1.5*1 | 1.5*1 | 3*1 |
| Weight(kg) | 2990 | 4070 | 7000 | 11840 |
| Outer dimension(mm) | 1470*1550*970 | 1800*1900*1210 | 2200*2150*1500 | 3670*2517*2050 |
| Conveyor motor power(KW) | 3 | 3 | 3 | 3 |
Notice:
The wood chippers for sale are indispensable component for people who want to set up a large wood pellet plant. If you are interested, pls contact us.
